New Customized Kohler 8 hp (K181) and (M8) engine rebuild kit.
Rebuild your Cub Cadet, Wheel Horse, Case or Sears 8 HP K181 Engine.
Save yourself alot of money....
Anybody can rebuild a Kohler engine themselves.
The suffix after the K181 does not matter, such as K181, K181S, K181AS and so on, all take the same rebuild parts.
This kit includes the following:
1- Piston COMES IN: Standard, +.010,+.020, or +.030 oversize
1- Connecting rod - Standard or .010
8HP K181 and M8 These measurements are not for machine shop use, the machine shop must have your NEW piston before they can bore your cylinder.
Standard cylinder bore........2.9375"
+.010 .................................. 2.9475"
+.020....................................2.9575"
+.030....................................2.9675"
Standard rod........................1.186"
.010 rod...............................1.176"
140" inch pounds Used: 100" inch pounds
Rebuild Cub Cadet, Wheel Horse, Case or Sears 8 HP K181 Engine.
The suffix after the K181 does not mater, such as K181, K181S, K181AS and so on, all take the same rebuild parts.

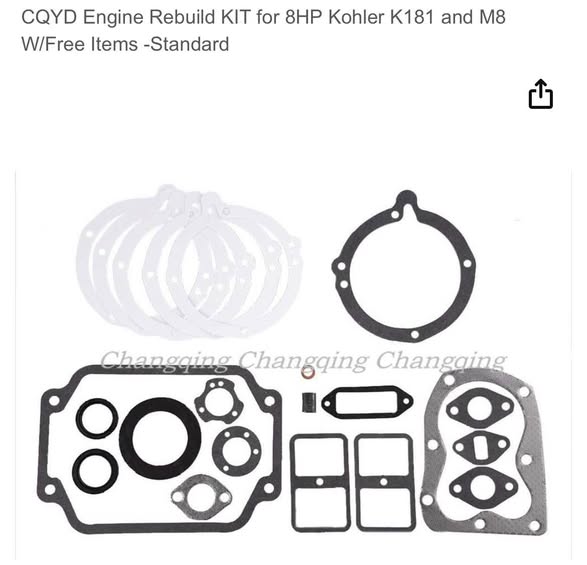

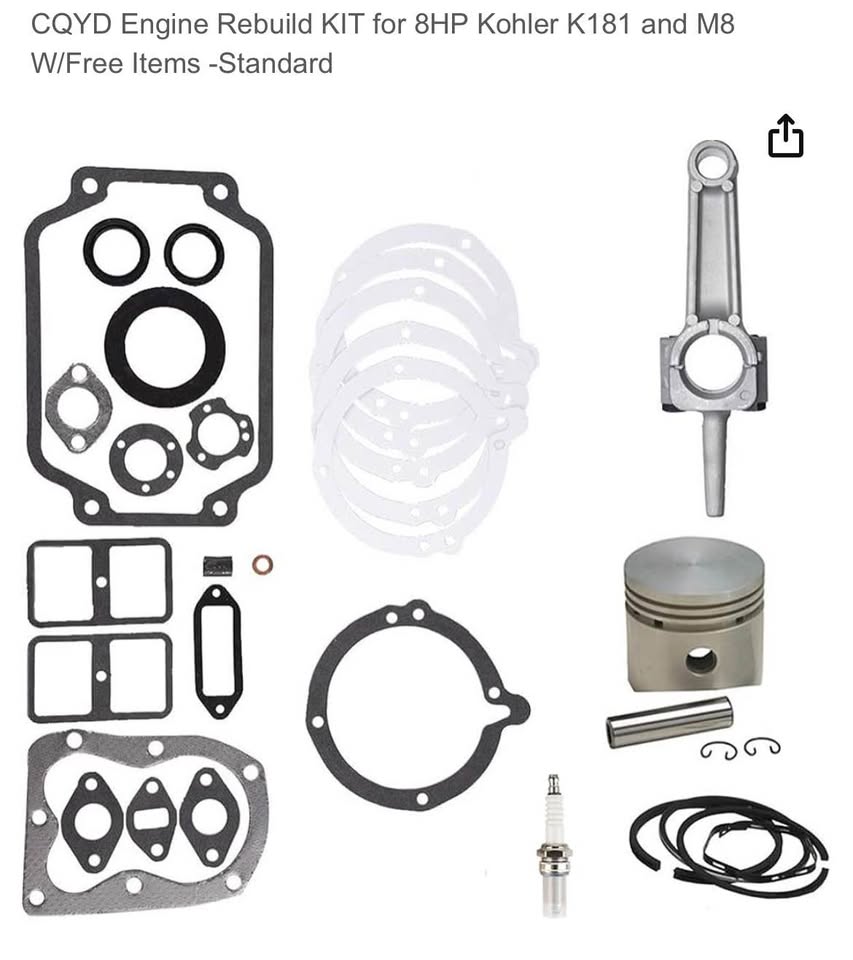

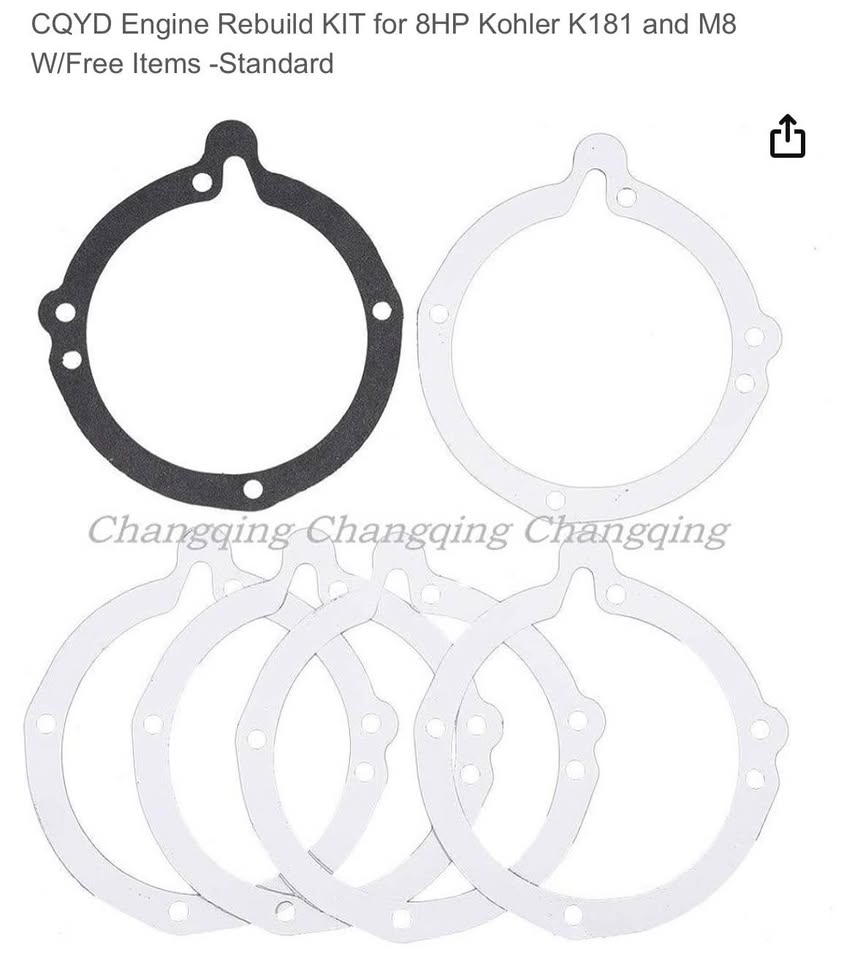

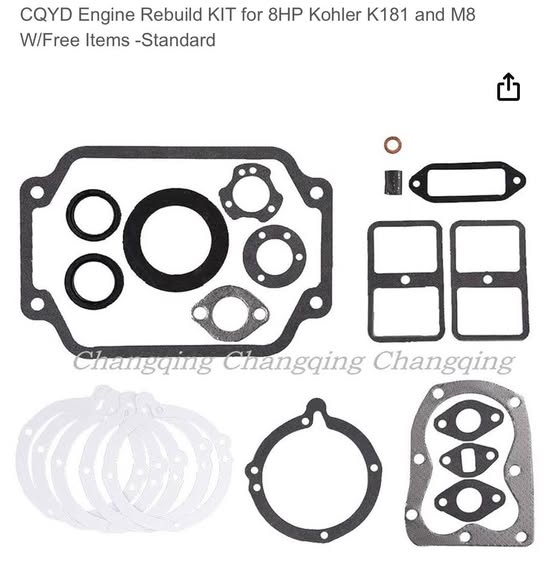

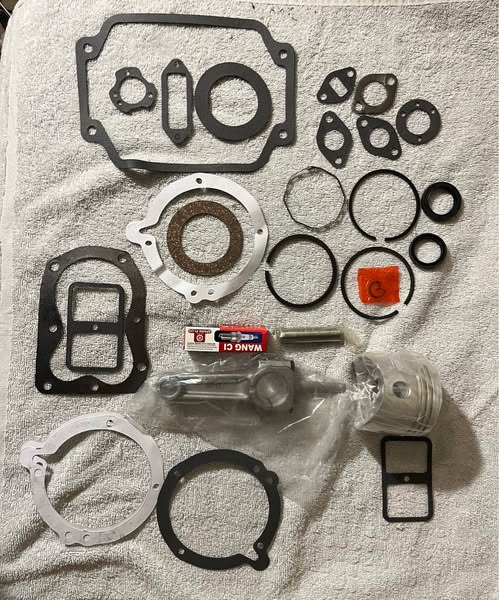

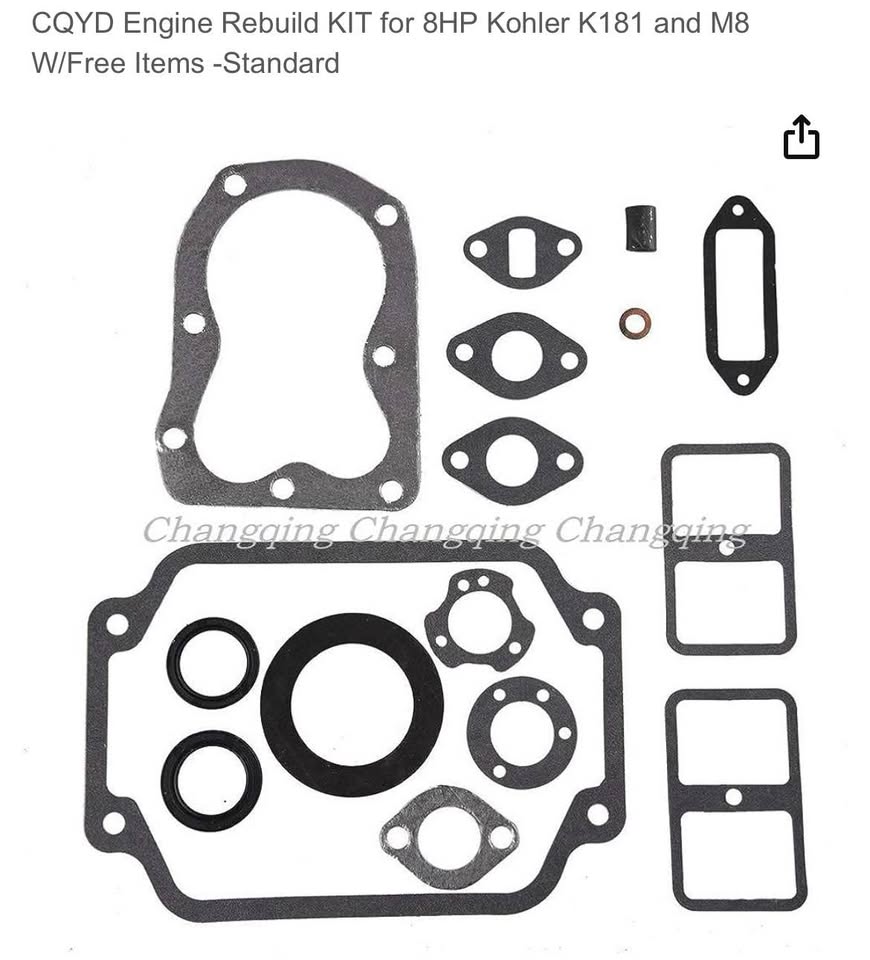

This kit includes the following:1- Piston -Standard 2- Piston Rings 3- Complete Gasket Set 4- Engine seals 5- 1X Connecting rod - Standard 6- Wrist pin and 2 Clips 7- New set of points
